Belden 1522A Technical Specs and Data

Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.

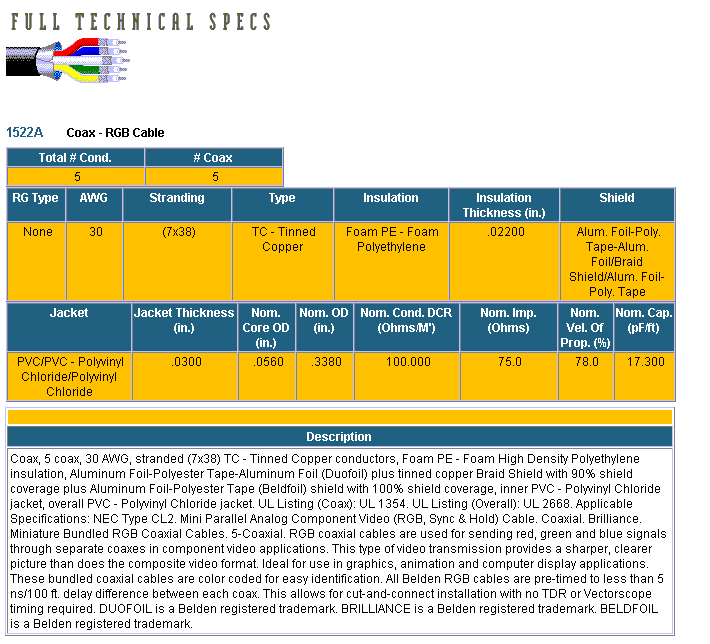

1522A spec sheet


1522A tech data



10-11-02 REV. 8                    1522A



I.   DESCRIPTION:



     ------------



     MINI PARALLEL ANALOG COMPONENT VIDEO (RGB, SYNC & HOLD)



     CABLE, FIVE 30 AWG COAXES.



II.  ELECTRICAL CHARACTERISTICS:



     ---------------------------



     NOM. IMPEDANCE:                   75 OHMS



     NOM. CAPACITANCE:                 17.3 PF/FT.



     NOM. VELOCITY OF PROPAGATION:     78%



     NOM. DELAY:                       1.30 NS/FT.



+    ATTENUATION



     NOMINAL



     MHZ      DB/100 FT.



       1        .8



       5       1.5



      10       2.2



      30       4.0



      50       5.4



     100       8.2



     200      12.5



     400      18.9



     700      26.5



     900      30.8



    1000      32.8



     NOM. SHIELD DC RESISTANCE:        9.5 OHMS/M FT.



     NOM. CONDUCTOR DC RESISTANCE:     100 OHMS/M FT.



     RETURN LOSS:                      25 DB MIN, 10-40 MHZ



III. PHYSICAL CHARACTERISTICS:



     -------------------------



     NOM. WEIGHT/1000 FT.:             60.7 LBS.



     MIN. BENDING RADIUS:              3.5"



     TEMPERATURE RATING:               -40 TO +60 DEG. C



     MAXIMUM PULLING TENSION:          70.0 LBS.



     SHIELD TYPE:



     (INDIVIDUAL COAX):                DUOFOIL(R) TAPE +90%



                                       TINNED COPPER BRAID



    (OVERALL SHIELD):                 BELDFOIL(R) TAPE; 100%



     CONDUCTOR MATERIAL:               30 AWG (7X38) SOFT



                                       TINNED COPPER



                                       .012" DIA.



    INSULATION MATERIAL-COAX:         FOAMED HIGH DENSITY PE



                                       .056" DIA.



   COLOR CODE OF JACKETED COAX:      RED, GRN, BLU, WHT, YEL



     INDIVIDUAL COAX DIA.:             .102"



     OVERALL JACKET MATERIAL:          BLACK PVC



     OVERALL DIA.:                     .338"



     UL LISTING-COAX:                  UL-1354



               -OVERALL:               UL-2668



     APPLICABLE SPECIFICATION          NEC TYPE CL2



     CONNECTOR INFORMATION:            KINGS #



*     INDIVIDUAL COAX                  2025-57-9
