Belden 1505F Technical Specs and Data

Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.

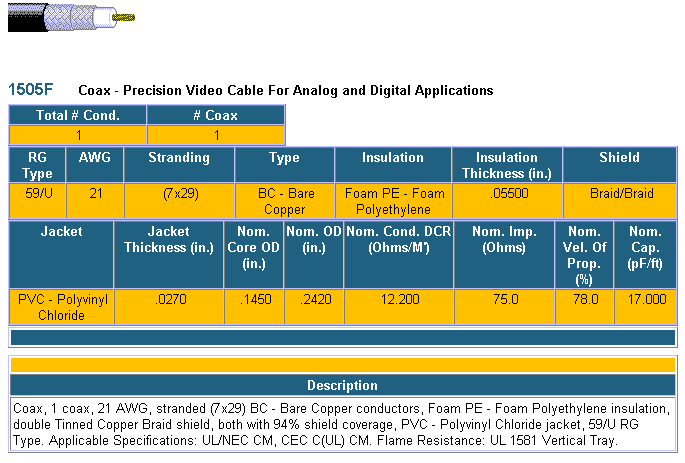

1505F spec sheet


1505F tech data



05-09-02 REV. 8            1505F



I.   DESCRIPTION:



     -----------



     FLEXIBLE VIDEO PATCH CABLE



II.  ELECTRICAL CHARACTERISTICS:



     --------------------------



     IMPEDANCE                     75 +/- 3 OHMS



     NOM. INDUCTANCE:              .094 MICRO-H/FT.



     NOM. CAPACITANCE



     CONDUCTOR TO SHIELD:          17 PF/FT.



     NOM. VELOCITY OF PROPAGATION: 78%



     NOM. DELAY:                   1.23 PF/FT.



     NOM. SHIELD DC RESISTANCE



     @ 20 DEG. C:                  2.4 OHMS/1000 FT



     NOM. CONDUCTOR DC RESISTANCE



     @ 20 DEG C:                   12.2 OHMS/1000 FT



     MAX OPERATING VOLATAGE:       300 V RMS



     MIN. RETURN LOSS:             15 DB, 5 - 3000 MHZ



.



*    NOM ATTENUATION:



        -MHZ-    -DB/100FT-         -MHZ-    -DB/100FT-



           1        0.21             180      4.1



        3.58        0.50             270      5.1



           5        0.60             360      6.0



           7        0.73             540      7.4



          10        0.89             720      8.7



        67.5        2.4              750      8.9



        71.5        2.5             1000      10.5



        88.5        2.8             1500      13.3



        100         3.0             2000      15.7



        135         3.5             2250      16.9



        143         3.6             3000      20.3



.



III. PHYSICAL CHARACTERISTICS:



     ------------------------



     NOM. WEIGHT/1000 FT. :        40 LBS.



     MIN. BENDING RADIUS:          2.4"



     TEMPERATURE RATING:           -35 TO +75 DEG.C



     MAX. PULLING TENSION:         90 LBS.



     CONDUCTOR MATERIAL &          BARE COPPER,



     NOM DIA:                      .0315" (7X29)



     CORE MATERIAL &               FOAM POLYETHYLENE,



     NOM DIA:                      .145"



     TYPE SHIELD, % COVERAGE &:    2 TINNED COPPER BRAIDS



     NOM DIA:                      INNER BRAID - 94%, .167"



                                   OUTER BRAID - 94%, .189"



     JACKET MATERIAL:              PVC



      NOM DIA:                     .242"



.



     APPLICABLE SPECIFICATIONS:     UL/NEC: CM



                                    CEC C(UL): CM



     FLAME RESISTANCE:             UL: UL-1581 VERTICAL TRAY



.



  ALL PERFORMANCE DATA CONTAINED HEREIN ARE CALCULATED BASED



  ON NOMINAL DIMENSIONS AND MATERIAL PROPERTIES. ACTUAL



  PERFORMANCE MAY VARY.
