Data Cables

Certified Cat 5e, Cat 6, and Cat 6a Ethernet Patch Cords:

The vast majority of cables sold as Category 6 or 6a, whether in brick-and-mortar establishments or online, simply do not meet the Category 6 or 6a specifications; we've put a lot of samples of a lot of other manufacturers' product through proper certification testing, and cables that actually pass spec are unusual. In fact, it's not uncommon for cables that are sold as "Cat 6" to even fail to meet Cat 5e specifications. Vendors get away with misrepresenting Ethernet patch cord performance because the average consumer isn't in a position to buy the $10,000 worth of gear it'll take to check his purchase against the spec. Here at Blue Jeans Cable we don't want to have anything to do with misrepresenting spec compliance -- every Ethernet patch cable we sell comes with its own individual test report, run on a Fluke DTX-1800 certification tester, showing that it meets or exceeds the applicable spec. If it doesn't, we won't sell it.

Categories and Cables

The three classifications of Ethernet cable we sell are Cat 5e, 6, and 6a. The principal difference between these three categories is bandwidth; Cat 5e is built to meet performance specifications (set out in TIA-568-C.2) up to 100 MHz, enabling it to handle common 100Base-T and 1000Base-T wired networks. Cat 6 goes much farther, with performance confirmed to 250 MHz; and 6a goes to 500 MHz, which, together with PAM-16 encoding, gets bandwidth all the way to 10 Gigs. To do this requires highly consistent bulk cable manufacture AND quality termination work, but the vast majority of patch cords on the market are cheap Chinese product, manufactured to very lax quality standards. We take specification compliance seriously here; not only do we use top-quality bulk cable and connectors, but we certification-test every cable assembly to ensure that every assembly we ship meets spec.

Our principal offerings for these three categories are all Belden-manufactured, bonded-pair cable. Belden's patented bonded-pair technology goes beyond conventional data cable pair twisting and actually bonds the two conductors of each pair together for exceptional impedance stability and low skew, especially under real-world flex and strain conditions. For Cat 5e, we use Belden 1700A, a stock Belden cable. For Cat 6 and 6a, Belden doesn't sell patch cord stock in its standard catalog (the cables you may be familiar with are designed primarily for "horizontal" use), so we've asked Belden to manufacture special patch-cord-optimized Cat 6 and Cat 6a cable stocks for us which we terminate and sell under the Blue Jeans Cable brand. With all of these cables, we use Sentinel brand RJ-45 connectors, manufactured in York, Pennsylvania. We also offer, as a more economical alternative, Belden 1583A--this is a conventional non-bonded pair Cat 5e cable, with a Panduit RJ-45 bootless but "snag-proof" connector. Regardless of the cable stock used, all of these cables are assembled and tested right here in Seattle by American workers.

Test Reports:

With each Ethernet cable you purchase from us you'll receive a test report showing exactly how that cable performed when run through our Fluke DTX-1800, and confirming that it meets or exceeds the specification requirements for its category. To see a sample of such a test report, and an explanation of what it means, see our article on how to read a DTX report.

Horizontal Cable: Jack-to-Jack, In-Wall Installable Cabling

In Cat 6 and 6a, there is generally a distinction made between "patch" cable stock, such as our 6 and 6a patchcords above, and "horizontal" cable stock, intended for runs inside of walls and terminated with jacks rather than plugs. Lower insertion loss targets result in most horizontal 6 and 6a cable being made with 23 AWG pairs, which are not very practical for termination into most plugs. We now offer our own Cat 6a (backward compatible, as always, with 6 and 5e) horizontal cable stock, based upon Belden's popular 10GX32 cable. This cable uses a beefy "double-h" spline to maintain pair separation not only between the pairs within the cable but also between the pairs and the outer jacket, to control alien crosstalk (AXT) which the 6a specification requires. This cable is available in a 500-foot spool or in shorter cut lengths.

Jacks:

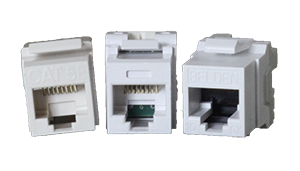

Jacks for use with horizontal cable, and keystone-style wallplates in which they can be mounted, are available below and in our Wallplates department. These include an economical Cat 5e jack as well as Cat 6 jacks from Panduit and Cat 6a jacks from Belden. The Panduit jacks are pricier than the generic 5e, and the Belden jacks, while superb in performance, are extremely pricey, and as most home networks are not running speeds which require Cat 6 or 6a performance, there's a good chance that the 5e jacks will be all you really need (and, of course, if you give yourself a bit of slack on installation, they can be replaced with 6 or 6a jacks at a later date if needed).

Installation Tools:

If you are installing horizontal cable, two tools that we offer may be of some use. While it is possible to install horizontal cable into punchdown jacks with almost any small dull-bladed implement (e.g., a mini-flathead screwdriver), the task is made a bit easier with a proper punchdown tool. Ours will punch the conductor down into the jack and snip off the trailing conductor end in one pass (it's important to make sure the blade is on the right side or you'll snip the conductor going IN to the jack). We also sell a cable tester -- not fancy like the Fluke, so it won't test performance, but it'll tell you whether the right pins on a patch cord (or on a whole channel with patchcord, horizontal, and another patchcord) are connected to the right pins on the other end.

Country of Origin info:

Our Cat 6 and Cat 6a cable stocks are manufactured in the United States, as are the RJ-45 connectors; the only imported component in our Cat 6 and Cat 6a cables is the strain relief boot. For Cat 5e, it's a bit more complicated, with the cable frequently, but not always, coming from non-US Belden plants. On 1700A we use the US-made Sentinel connector with imported strain reliefs, while on 1583A we use the Panduit connector which is manufactured in Costa Rica. All of our Cat 5e, 6, and 6a cables are assembled here in Seattle.

USB Cables: 2.0 and 3.0

We have USB cables in 2.0 and 3.0 versions, as listed below. All cables are terminated in the standard configuration with one type A and one type B connector, the difference between the 2.0 and 3.0 being in the connector style (3.0 has more conductors in the cable, hence more contacts in the connector and, in the case of the type B, a larger connector envelope). Compatibility Notes: USB 2.0 plugs will fit in 3.0 jacks, and USB 3.0 "type A" plugs will fit into USB 2.0 "type A" jacks, but a USB 3.0 "type B" plug will NOT fit into a USB 2.0 "type B" jack. A USB 3.0 cable will work either to interconnect USB 3.0 devices or to connect a 3.0 device (with B jack) to a device with a 2.0 type A jack; if it's used to do the latter, however, it will work no better than a 2.0 cable would. For a comparison of the type B connectors, see the third photo below:

USB 2.0 cableUSB 3.0 cableUSB 3.0 and 2.0 "B" connectors


Cat 5e Patch Cords--Belden 1700A
Bonded pairs; high-performance Cat 5e, CM rated for installation
Every cable individually tested, with report
Length in feet Color Price


Cat 6 Patch Cords--BJC C6P
Bonded pairs, Cat 6, 250 MHz; Rated CMR for installation
Every cable individually tested, with report
Length in feet Color Price


Cat 6a Patch Cords--BJC C6AP
Bonded Pairs, Cat 6a, 500 MHz; Rated CMR for installation
Every cable individually tested, with report
Length in feet Color Price


Cat 5e Patch Cords--Belden 1583A
Non-bonded, "economy" version, CMR rated
Every cable individually tested, with report
Length in feet Color Price


BJC Horizontal 6A Cable, unterminated
500 foot spool, Blue
$375.00
Cut lengths:
Enter Length in feet below
.85/ft


Jacks, Wallplates and Tools
Cat 5e jack2.00
Cat 6 jack(Panduit)7.00
Cat 6a jack(Belden) 16.00
Wallplates1.00
Punchdown tool25.00
Cable tester25.00


USB 2.0 Cables
Black jacket, type A to type B connectors
Length Price Length Price
3 foot 1.50
10 foot 2.50
6 foot 2.00
15 foot 3.50


USB 3.0 Cables
Blue jacket, type A to type B connectors
Length Price Length Price
3 foot 4.00
6 foot 5.50
