RGBHV Cables

We offer a wide selection of cables for use with HDTV devices, LCD, DLP and CRT projectors, and computer/video integration, along with conventional RGBS and RGBHV cables terminated with RCA and BNC connectors. Because the HD15 or "VGA" computer monitor-type plug has become a common sight on these types of devices, one of the most common problems is just how to get signals into and out of these tiny plugs. Whether you just need to go from one HD15 to another, need to hook component video up to a projector or HD display's VGA port, or need a conventional RGBS or RGBHV cable, we have what you need.

The HD15 Plug, used on many HDTV devices and video projectors

The HD15 Plug Problem:

The HD15 connector may be a favorite with today's video equipment designers, but it's a lousy video connector and gives rise to a real cabling problem. The connector body is too small, and the pins are too closely spaced, for the connector to accommodate full-sized precision video cable. This problem can be solved in one of two ways. Either we can (1) use a miniature coax bundle which is sized to fit the HD15, or (2) fit a "breakout" adapter to the HD15, running miniature cable out just a short distance to BNC jacks which can then be joined to full-sized coax for the remainder of the run. Which of these options is better will depend on run length; for short runs, a high-quality miniature coax will deliver excellent results, while keeping excess connectors out of the signal chain, while for long runs, the lower-loss characteristics of the full-sized cables will make the breakout the better choice. It's very hard to say in principle where the breakpoint occurs between these two methods; as a somewhat arbitrary rule of thumb, we usually recommend the single cable for runs under 15 feet, and the breakout for longer runs.

Belden 1522A Cable, stripped to show its inner construction

Belden 1522A: The Mini-Coax Solution

For short runs where miniature coax is the best answer, or for applications where keeping cable size small is important, we offer cables made with Belden 1522A; a picture of this cable, stripped, is displayed to the right. Belden 1522A is a bundle of five tiny precision video coaxes designed for RGBHV use; despite the small size, this is an extremely well-made and high-quality cable. Each of the individual coaxes is covered with a two-layered foil shield, which in turn is covered by a 90% coverage tinned copper braid. These five coaxes are then covered with another outer shield of foil, with a drain wire for solid ground connection. Although signal loss is always a concern with miniature coax, we have tested computer monitor cables made with Belden 1522A out to 40 feet, and have seen no loss of image quality on a conventional computer display at that length.

HD15 to HD15 Cable, made with Belden 1522A

HD15 to HD15 Cables:

Our HD15 to HD15 cables, made with Belden 1522A, use a standard gold-pin HD15 solder-type pin body, and a solid all-metal shell for good mechanical stability and electrical shielding. It should be noted that while these will work well in almost all applications which call for a "VGA" type cable, a VGA cable made specifically for computer applications will have a few additional conductors which are absent here, and which are used for communication between the computer and monitor. Our HD15 to HD15 cables have all of the video lines connected (red, green, blue, horizontal and vertical sync) but do not have those additional conductors; in the vast majority of home theater applications, these cables will function perfectly.

Belden 1522A Cable with HD15 plug and Three RCA plugs, for Component Video or Sync-on-green RGB

HD15 to RCA or BNC Cables:

We also offer cables with an HD15 connector on one end, and the other end terminated with Calrad solder-type RCA plugs or RF-brand male 75 ohm BNC plugs, also using Belden 1522A (note: the male BNC is not what you want if you need a breakout cable--see our breakout adapters below). These are available with three or five plugs, depending on your application--three for component or "sync on green" RGB, five for RGBHV (and yes, the five-way will work with RGB with composite sync; just leave the vertical sync connector unplugged).

One note: it's easy to make the mistake of assuming that because a cable has an HD15 connector at one end, and three RCAs at the other coded red, green, and blue, that this cable will work when one needs to connect a component video RCA output to an HD15 projector input. While this type of connection frequently will work, it's important to check your user's manual before trying it. If the projector's specs do not indicate that it will accept a Y/Pb/Pr (or "component video") signal through this port, it likely will not. Also, when using this sort of connection it's good to keep in mind that some devices require you to manually select your colorspace setting; if your colors are completely wrong, take a look at your colorspace setting.

The Full-Size Solution: Full-Sized Cable with Breakout Adapters

We offer RGB, RGBS, and RGBHV cables in full-sized versions also, and these can be used either on their own--with equipment that doesn't use those pesky HD15 connectors--or with an HD15 "breakout" adapter, a short length of miniature coax which separates the HD15 into multiple female BNCs to be joined to the full-sized cable. The advantage of this arrangement is lower signal loss over long runs.

The Cable: Belden 1694A:

Any 75 ohm video coax can be used for RGBS and RGBHV runs; but the very best performing cable for this application is Belden's precision video coax, Belden 1694A. This cable uses a high-density polyethylene foam dielectric for low capacitance and exceptional velocity of propagation, and its shielding--two layers of foil and a dense tinned copper braid--gives it maximum protection from EMI and RFI. This excellent isolation from noise, while important in every application, is especially so in the long cable runs that are typical in home theater applications. View the technical specs for Belden 1694A.

Canare RCAP RCA Plugs and BNC Connectors

The Connectors: Canare RCAPs and/or BNCs

On our full-sized cables, we use Canare plugs; we offer both RCA and BNC plugs from Canare, at your option. The Canare BNC plug is a true 75 ohm connector, and the RCA plug is designed for the best possible impedance match with 75 ohm cable. Between the tight impedance tolerance of the Belden cable and the impedance-matched design of these connectors, you'll get the best possible impedance consistency between your equipment, for minimum signal reflection. The Canare crimp assembly system provides a superb, electrically sound, mechanically reliable connection with both the center pin and the connector body through the use of tight compression dies made specifically for these connectors. View Canare's description and specs for the RCAP plugs. View Canare's description and specs for the BNC plugs.

Calrad HD15 to BNC breakout adapter

Economy Breakout Adapter:

If you're connecting to an HD15 plug with full-sized cables, you'll need a breakout adapter with female BNCs on one end, and you'll want the accompanying cable to have male BNCs to connect to that adapter. At right is a breakout adapter which we have made for us in China; no specs are available for it. Despite the fact that the Belden 1522A breakout adapter is a technically superior product, the short length of the breakout and the serviceable quality of these Chinese adapters makes them very dependable. We've had many customers use these without problems, and they have the advantage of low cost as compared to the Belden 1522A version.

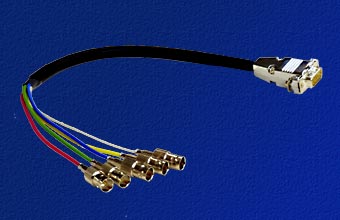

Our own breakout adapter--Belden 1522A with RF female BNCs

Alternative Breakout Adapter: Belden 1522A

If you prefer, we also offer our own breakout adapter, which we produce using Belden 1522A, a solder-type gold-pin HD15, and RF-brand crimp-type female BNCs. We offer this adapter both in three-BNC and five-BNC versions. While technically this is a better product than the AVLink, we have to admit that in most applications there will be no observable difference in performance between the two because the length of the adapter is so short--so we heartily recommend the less-expensive AVLink adapter.

Breakout to RCA jacks:

We're often asked about breakout adapters to RCA female connectors. We have never found a suitable inline RCA female for use in manufacturing these, and so don't offer our own at this time. Please do note that since we offer all of our video cables with BNCs at one or both ends, and since the BNC is a better video connector than the RCA, if you're buying the cable as well as the breakout from us, there's really no reason to go with RCAs at this connection. If, however, you're in the position of needing to use one of these breakouts with an existing RCA-terminated cable, we do carry RCA/BNC adapters at $2.50 each which can be used to make the connection; don't forget that you'll need three, four, or five of these depending on your specific application.

We think you'll be impressed with the performance of our cables; but we also offer a simple and easy return policy. If for any reason you're not completely satisfied, just return the cables, undamaged, within 30 days and we'll refund your purchase price in full.

Other Coaxes:

Belden 1522A is our only miniature coax product, and therefore the only cable available to run directly into an HD15; however, we can supply full-sized cables using a wide variety of other coaxes from Belden and Canare. Here are a few of the alternatives; for a complete list, click here to see all the coaxes we currently offer.

Belden 1505F Coax:

For most applications, where your cables will be installed once or a few times and seldom handled, we recommend the solid-conductor coaxes above. However, if you will be handling your cables on a regular basis because of frequent system reconfigurations, or mobile use, or what-have-you, or if you will need to route your cables around tight corners without kinking and without having the cable "fight back", a more flexible cable with a stranded center conductor will be easier to work with. Belden 1505F is a precision video cable designed as a patch panel cable; it is significantly more flexible than Belden's solid-core precision video cables, and somewhat thinner than 1694A. View Belden's technical specs for 1505F.

Belden 1695A Coax:

Belden 1695A is a Teflon dielectric version of 1694A, almost identical in performance specs, but fire-rated for use in plenums. View Belden's technical specs for 1695A.

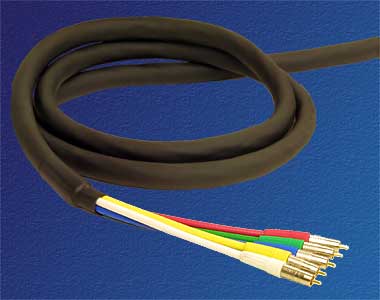

Techflex Braided Cable Jacket:

Apart from the bundled Belden 1522A, all of the cables described above come as four or five separate cables of identical length, with color-coded boots. If you prefer cables which are grouped together in a common jacket, we also offer Techflex, a black plastic braided covering similar to a "finger trap," on cables up to twelve feet long. Techflex adds one dollar per foot to the cost of any cable assembly above.


To Order:

Just fill in your cable length in feet in the appropriate form below, select any applicable options, and the price will display to the right. To purchase, click "add to cart."

Belden 1522A HD15 to HD15 Cable
(for VGA-plug to VGA-plug connection
only, no RCA or BNC)
Length in feet
(between connectors)
Price

Belden 1522A HD15 to 3 or 5 RCA or BNC Cables
(miniature cable, recommended for runs not over 15 feet)
Length in feet
(between connectors)
3 or 5-way Connectors
What's This?
Price

Belden 1694A RGBHV or RGBS Cables
Length in feet
(between connectors)
Channels Connectors
What's This?
Cable Color
What's This?
w/Techflex
What's This?
Price

Belden 1505F RGBHV or RGBS Cables
(high-flex cable)
Length in feet
(between connectors)
Channels Connectors
What's This?
Cable Color
What's This?
w/Techflex
What's This?
Price

Breakout Adapters:

All adapters are approx. one foot long

Description Price
Male HD15 to 5 Female BNC Breakout Adapter $25.95
Belden 1522A HD15 to 5 Female BNC Breakout Adapter $79.95
Female RCA/Male BNC Adapter $2.50
Belden 1522A HD15 to HD15 Cable
(for VGA-plug to VGA-plug connection
only, no RCA or BNC)
Length in feet
Price

Belden 1522A HD15 to 3 or 5 RCA or BNC Cables
(miniature cable, recommended for runs not over 15 feet)
Length in feet
3 or 5-way
Connectors
What's This?
Price

Belden 1694A RGBHV or RGBS Cables
Length in feet
Channels
Connectors
What's This?
Cable Color
What's This?
w/Techflex
What's This?
Price

Belden 1505F RGBHV or RGBS Cables
(high-flex cable)
Length in feet
(between connectors)
Channels
Connectors
What's This?
Cable Color
What's This?
w/Techflex
What's This?
Price

Breakout Adapters:

All adapters are approx. one foot long

Description Price
Male HD15 to 5 Female BNC Breakout Adapter $25.95
Belden 1522A HD15 to 5 Female BNC Breakout Adapter $79.95
Female RCA/Male BNC Adapter $2.50
