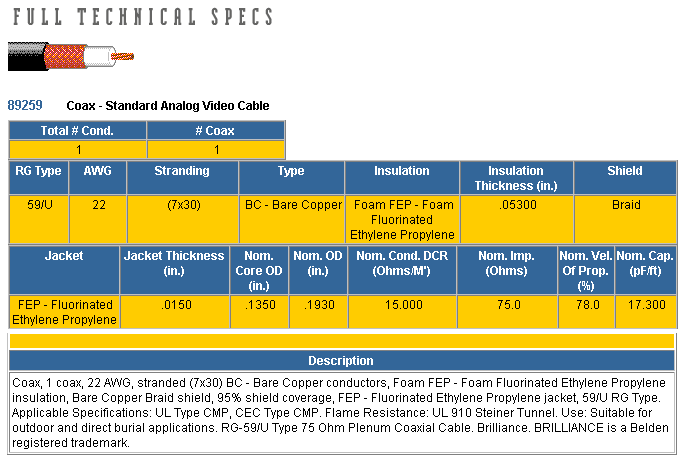

Belden 89259 Technical Specs and Data
Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.
|
10-12-00 REV. 13 |
|
89259 |
|
I. DESCRIPTION: |
|
------------ |
|
RG-59/U TYPE 75 OHM PLENUM COAXIAL CABLE |
|
II. ELECTRICAL CHARACTERISTICS: |
|
--------------------------- |
|
NOM. IMPEDANCE: 75 OHMS |
|
NOM. INDUCTANCE: .092 MICRO-H/FT. |
|
NOM. CAPACITANCE |
|
CONDUCTOR TO SHIELD: 17.3 PF/FT. |
|
NOM. VELOCITY OF PROPAGATION: 78% |
|
NOM. DELAY: 1.3 NS/FT. |
|
ATTENUATION: |
|
NOMINAL |
|
MHZ DB/100 FT. |
|
1 .3 |
|
10 .9 |
|
50 2.1 |
|
100 3.0 |
|
200 4.5 |
|
400 6.6 |
|
700 9.0 |
|
900 10.1 |
|
1000 11.0 |
|
NOM. SHIELD DC RESISTANCE: 2.6 OHMS/1000 FT. |
|
NOM. CONDUCTOR DC RESISTANCE: 15.0 OHMS/1000 FT. |
|
SUGGESTED WORKING VOLTAGE: 300 V RMS |
|
III. PHYSICAL CHARACTERSTICS |
|
----------------------- |
|
NOM. WEIGHT/1000 FT.: 36 LBS |
|
MIN. BENDING RADIUS: 2.5" |
|
TEMPERATURE RATING: -70 TO +200 DEG.C |
|
SHIELD TYPE: BC BRAID, 95% COVERAGE |
|
INSULATION MATERIAL: FOAMED FEP |
|
JACKET MATERIAL: FEP (BLACK) |
|
OUTSIDE DIMENSIONS: .193" NOM. |
|
MAX. PULLING TENSION: 70 LBS. |
|
CONDUCTOR DIAMETER: .030" NOM. |
|
CORE DIAMETER: .135" NOM. |
|
APPLICATION SPECIFICATION: UL TYPE CMP |
|
CEC C(UL) CMP |
|
FLAME RESISTANCE: UL 910 STEINER TUNNEL |
