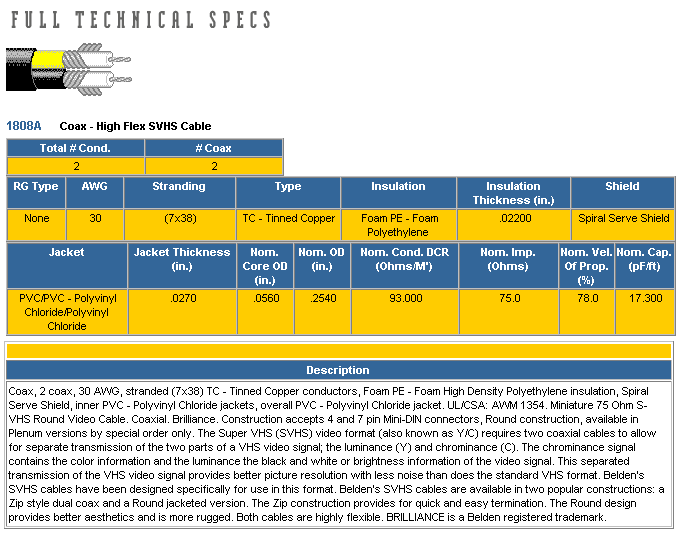

Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.








03/06/02 REV. 4                  1808A

.

I.   DESCRIPTION:

     -----------

     MINIATURE 75 OHM S-VHS ROUND VIDEO CABLE.

.

II.  ELECTRICAL CHARACTERISTICS:

     --------------------------

     IMPEDANCE:                       75 +/- 5 OHMS

     VELOCITY OF PROPAGATION:         78%

     CAPACITANCE

      CONDUCTOR TO SHIELD:            17.3 PF/FT.

     INDUCTANCE:                      .097 MICRO-H/FT.

     ATTENUATION:                     MHZ   DB/100 FT.

                                       1      .6

                                       3.6   1.2

                                       5     1.4

                                       7     1.7

                                       9     2.0

                                      10     2.1

                                      30     3.8

                                      50     5.1

                                     100     7.6

.

III. PHYSICAL CHARACTERISTICS:

     ------------------------

     TEMPERATURE RATING:              -40 TO +60 C

     MIN. BEND RADIUS:                1.0"

     MAX. PULLING TENSION:            11.7 LBS.

*    WEIGHT/1000 FT.:                 32 LBS.

     CONDUCTOR MATERIAL & DIA.:       30(7X.004) TC

                                      .013"

     INSULATION MATERIAL:             FOAMED HDPE

     SHIELD TYPE AND % COVERAGE:      TC SERVE; 90%

     JACKET MATERIAL & DIA.:          PVC (MATTE BLACK)

                                      .255"

     UL/CSA:                          AWM 1354

.

IV.  COLOR CODE:                      BLACK, YELLOW

.

     ALL VALUES NOMINAL UNLESS OTHERWISE STATED
